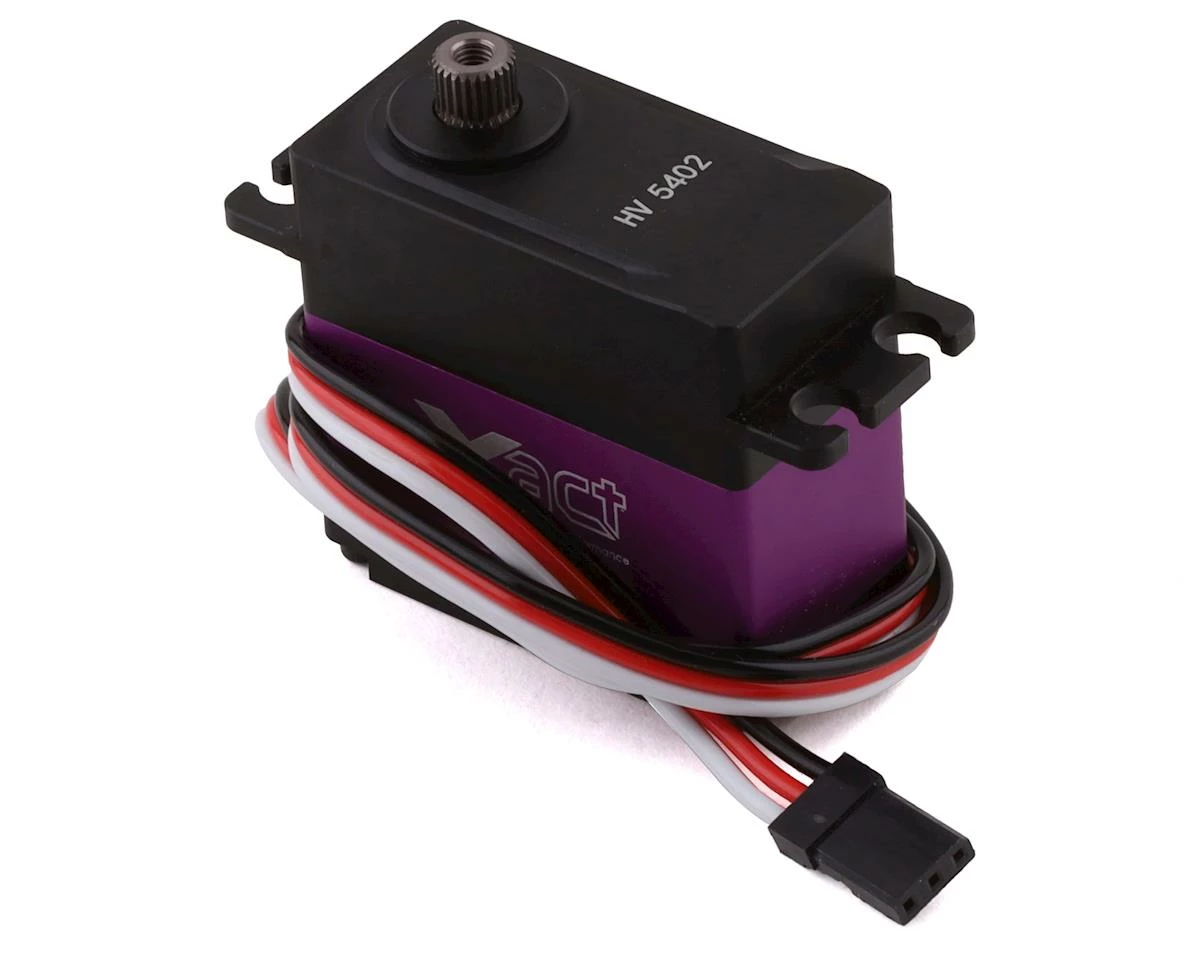

The FrSky Xact HV5402 Standard Servo utilize all CNC machined aluminum protective case and metal gears, these servos are 8.4V high voltage capable and offer high speed and configurable torque performance. Also, the Xact series servos offer multiple form factors and configurations to fit for different model types and precision usage.

Working with the F.Port 2.0 protocol, the telemetry data (like real-time current and voltage) of Xact servos can be achieved and transmitted back to the radio by connecting either F.Port 2.0 capable receiver or flight controller. All the preset servo options of speed and torque can be configured directly on an ACCESS radio through the host device of F.Port 2.0 line, and the configurable servo steering as well as travel degree are additions now can be expected on this series.

• Supports F.Port 2.0, SBUS and PWM protocol
• High durability with metal gear and all-aluminum CNC machined protective case
• Waterproof design gives stronger durability for RC vehicles in wet conditions
• 8.4V high voltage capable operation with good speed performance
• Built-in dual precision balls bearing with hall sensor
• Supports over-current and over-hot monitor and alarm
• Updatable firmware ensures the performance superior

Torque @ 6.0v – 11.0 kgf.cm / 152.8 Oz-in

Torque @ 7.0v – 12.5 kgf.cm / 173.6 Oz-in

Torque @ 8.4v – 14.8 kgf.cm / 205.5 Oz-in

Speed @ 6.0v – 0.12 sec/60°

Speed @ 7.0v – 0.10 sec/60°

Speed @ 8.4v – 0.08 sec/60°

Dimensions: 40*20*39mm (L*W*H)

Weight: 72g

Motor Type: Coreless

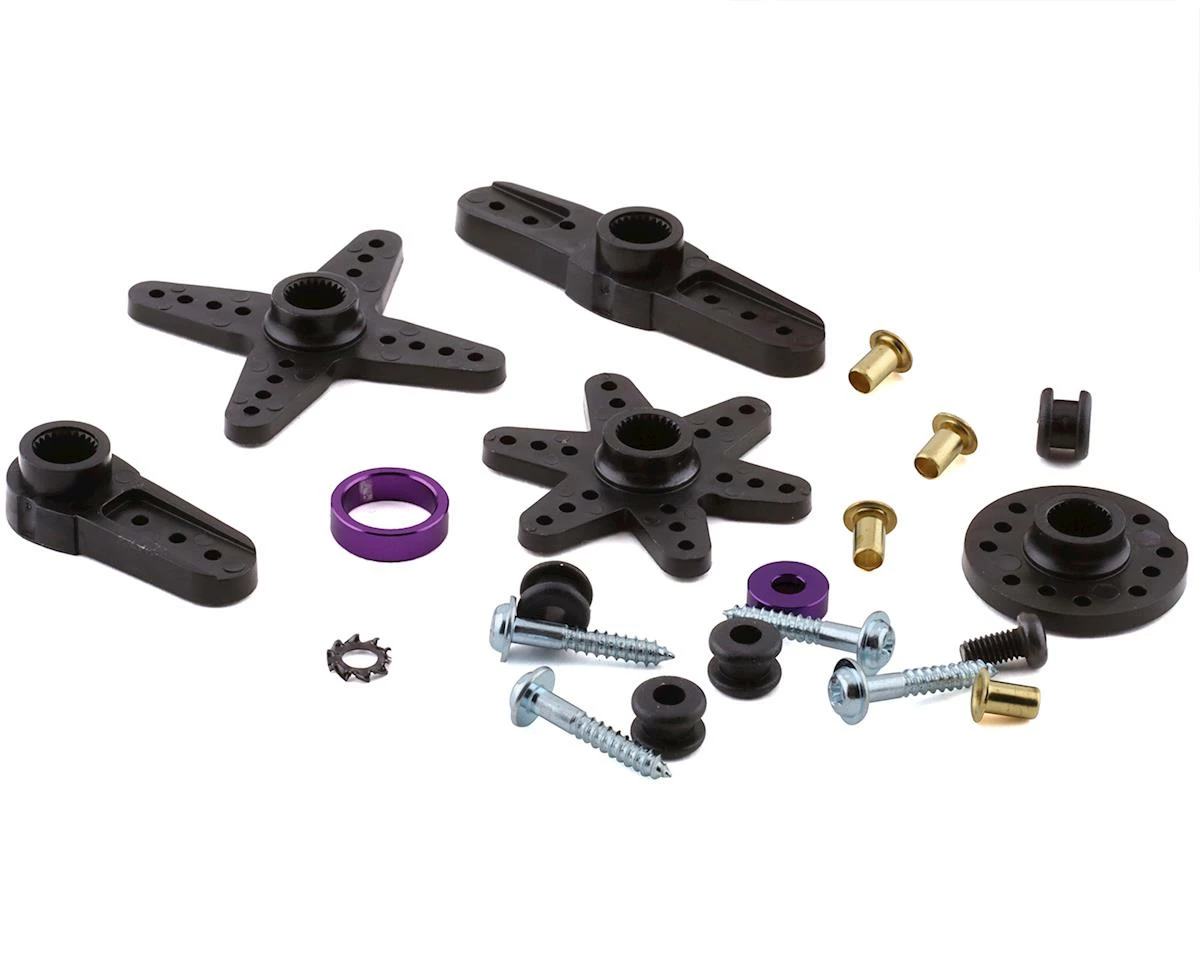

Servo Horn Spline: 6mm 25T

Stall Current: [email protected] / [email protected] / [email protected]

Operating Voltage Range: 4.8-8.4V

Max Refresh Rate: 333Hz
