Coupon 🤩 Hyperion BM803A+ AC/DC Digital Clamp On Current Meter/Ammeter 👍

This is a Hyperion BM803A+ AC/DC Digital Clamp On Current Meter and Ammeter, a device with a high precision measurement range for electrical maintenance and measurement. The redesigned BM803A+ multi-meter is a hand-held universal function tool with a novel appearance, more in line with international safety standards. It features holding function, automatic shutdown, buzzer sounds and configuration of the tester in accordance with the international standard.

The BM803A+ is an auto/manual range AC/DC clamp meter and can be used to measure AC/DC voltage and AC current. For AC current, it has 6 ranges from 40 mA to 1,000 Amp. Also you can use it to measure resistance, capacitance, frequency, diode check as well as continuity test. This is a great tool for power-use testing. Checking and repairing appliances, measuring your amplifiers, current draw and voltage for really just about any device.

Included test leads have flexible, insulated wires (red for positive, black for negative) that plug into the DMM jack. They serve as the conductor from the item being tested to the multi-meter. The probe tips are pointed on each lead and simplify testing of small circuits and components.

• DC/AC true RMS clamp multi-meter
• Large high contrast LCD screen 3 3/4 bit Digit, Max digit display:3999
• Overload protection
• Automatic range
• AC voltage measuring frequency
• Surge current measurement Inrush Current
• Data Hold, Zero adjustment, Auto power-off
• Battery-low and Polarity indication
• Maximum clamp jaw opening is 52mm
• High reliable range/function rotary switch selector
• Test leads included with flexible wire and pointed probes

DCV: 400m/4/40/400V±0.8%±2,1000V±1%±3

ACV: 400m/4/40/400V±1.2%±5, 700V±1.5%±3

ACA: 400/1000A±2%±10

DCA: 400/1000A±2%±10

Resistance: 400/4K/40K/400K/4M +/- 1.0% 40M, +/- 1.2%

Capacitance: 10n/100n/1m/10mF ±3.0%

Frequency: 100/1000/10K/100K/1MHz/10MM/40M Hz ± 0.5%

Diode test: YES

Continuity tester: Buzzer (if resistance is less than 50 ohms)

Temperature range: -50°C~380°C (-58°F~716°F), 301°C~1000°C (-601°F~1832°F)

Duty: 1%-99%

Dimension: 249 x 89 x 38mm

Weight: 360g (including battery)

Power supply: 9V, 6F22 (Included)

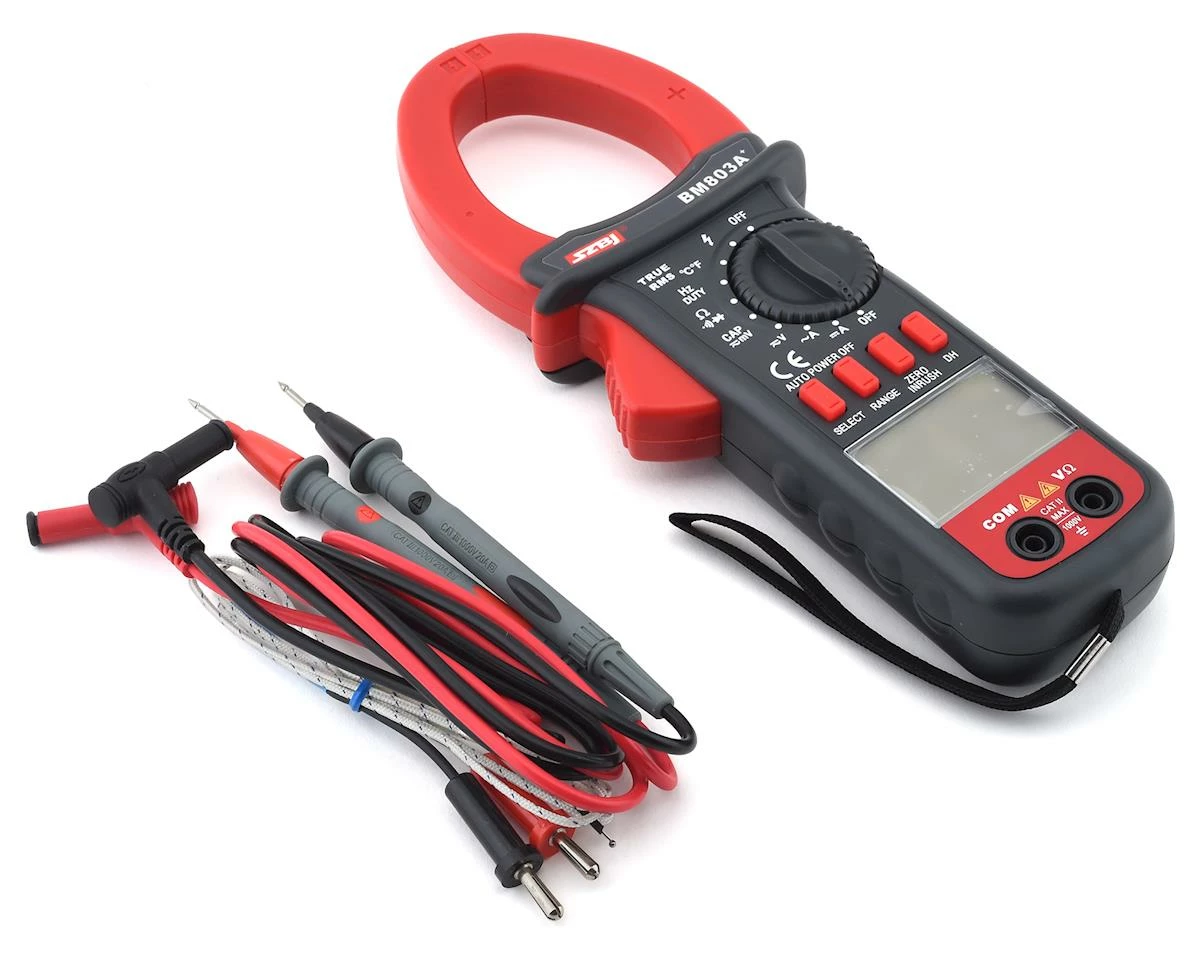

• (1) BM803A+ AC/DC Digital Clamp On Current Meter/Ammeter
• (1) Test lead
• (1) Thermocouple Wire
• (1) 9V battery

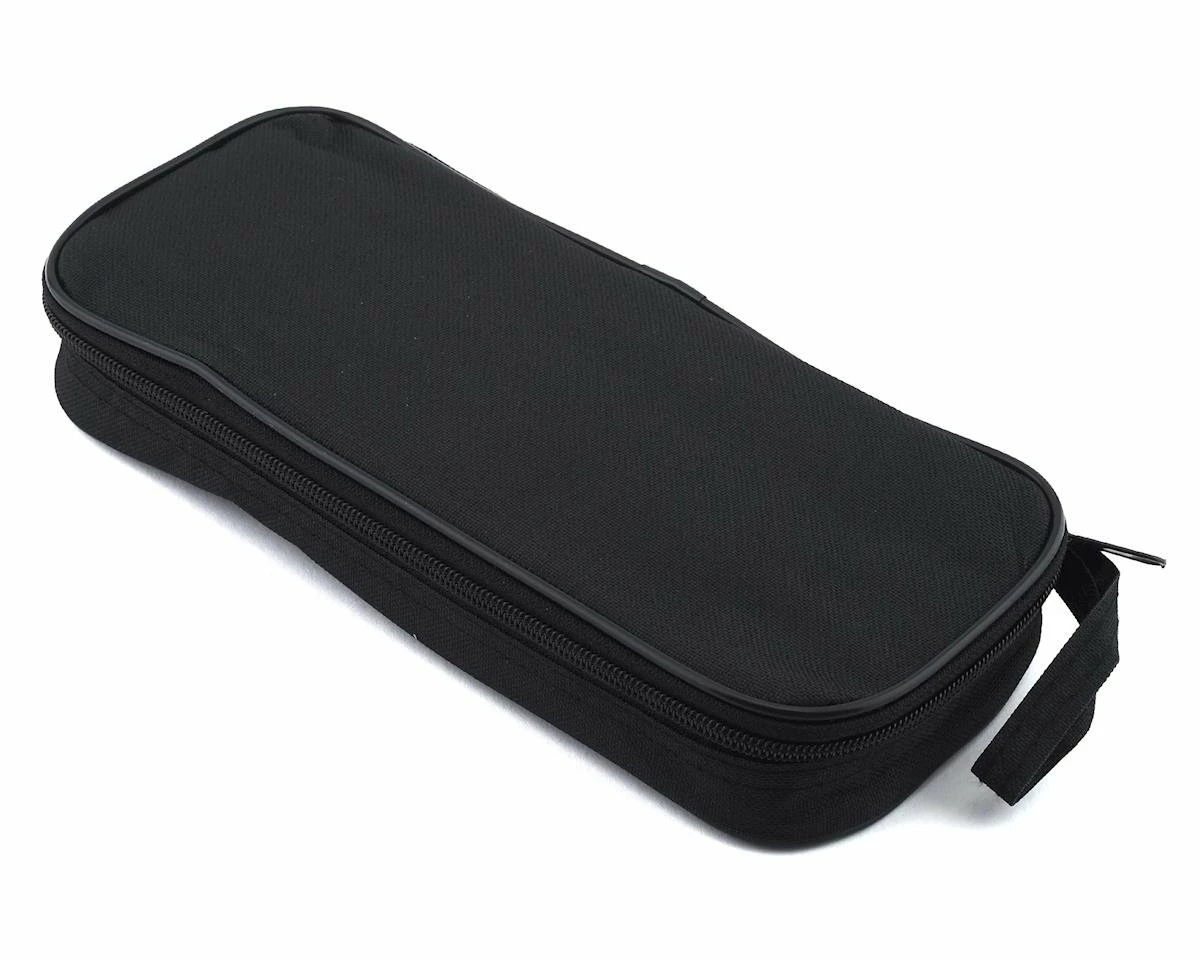

• (1) Fabric carrying case
• (1) User Manual
